Veriti热循环仪

经验证的可靠性
Veriti热循环仪秉承了Applied Biosystems PCR所具备的可靠性,同时添加了VeriFlex™模块控制功能。VeriFlex™模块能为您提供6个独立的温度模块,可针对您的PCR优化提供准确的温度控制,为您呈递“优于梯度”的新途径。

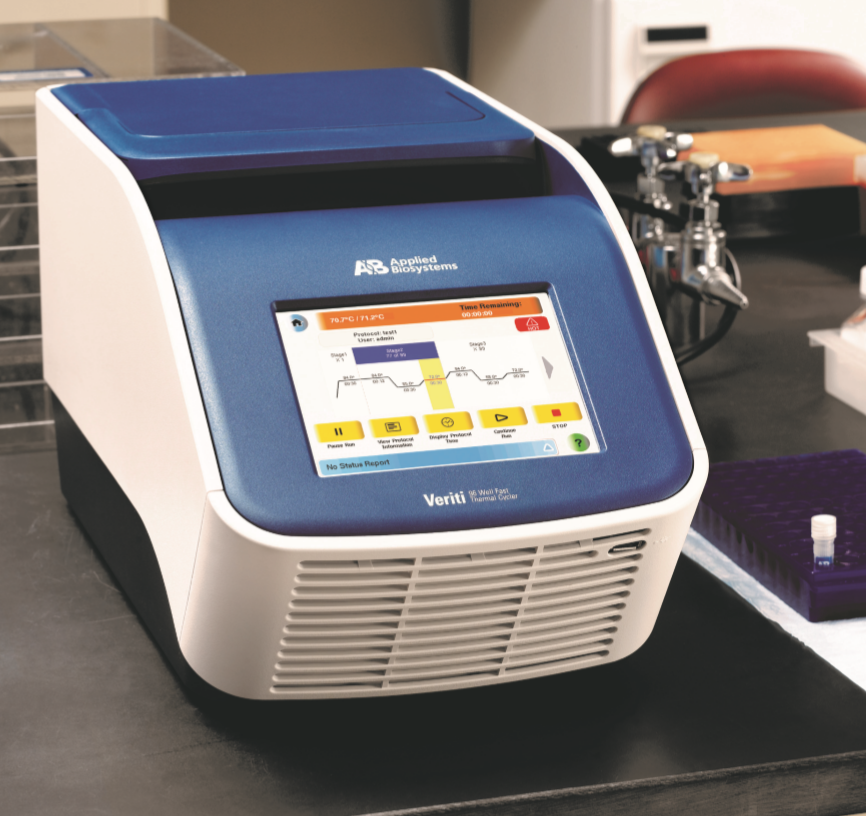

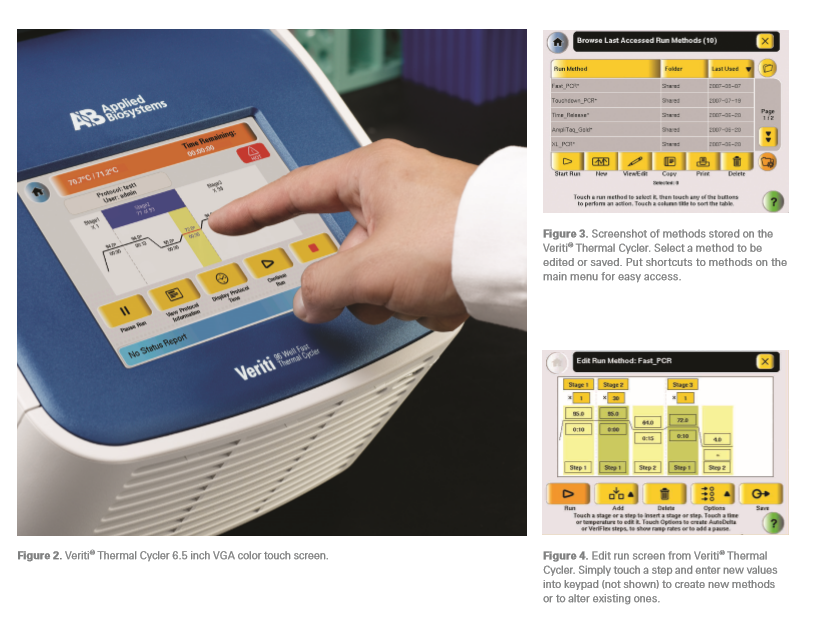

功能强大的彩色触控屏用户界面,简化了Veriti 96孔快速热循环仪的设置和使用。具有快速和标准PCR两种模式可选,赋予您极大的灵活性,缩短PCR循环周期时间。


  • 产品详情

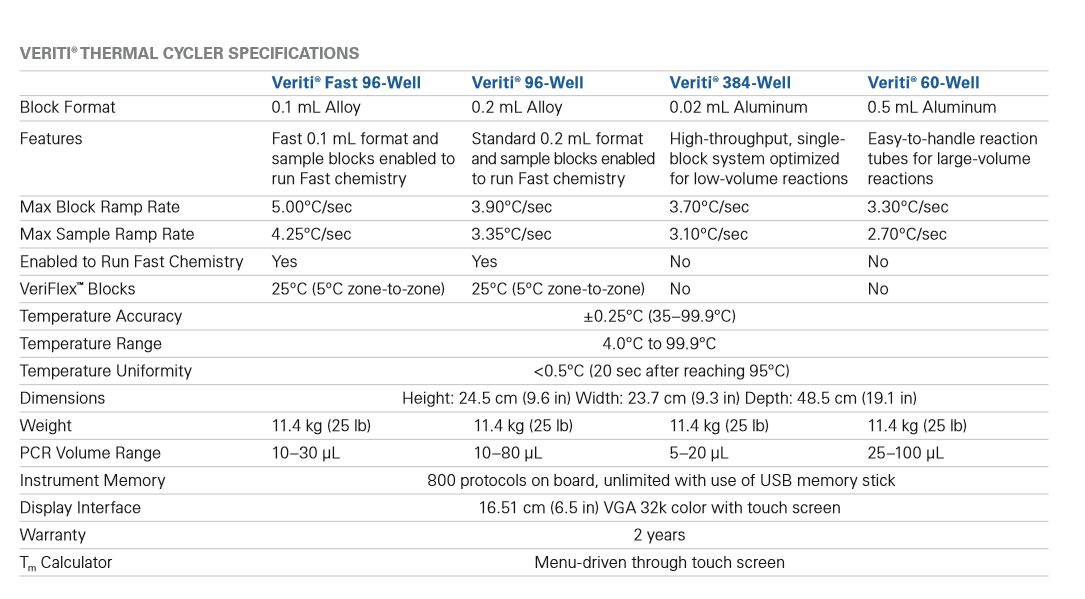

  • 技术参数




用于PCR优化的多重控温区

VeriFlex™ 模块可提供优于梯度的PCR优化方法。其配有6个独立的Peltier加热块,使您可以在6个温度区间内进行准确的控制。

  • 高度准确地确定更佳的退火温度,不必像使用传统梯度法时那样猜测(图1)
  • 节省时间,在同一次PCR运行中至多可进行6种不同退火温度的反应
  • 可将热循环仪用作一个具有6种准确控制温度的孵育箱



 Figure 1. Get linear gradient with Veriti Better than Gradient and not a non-linear curve.

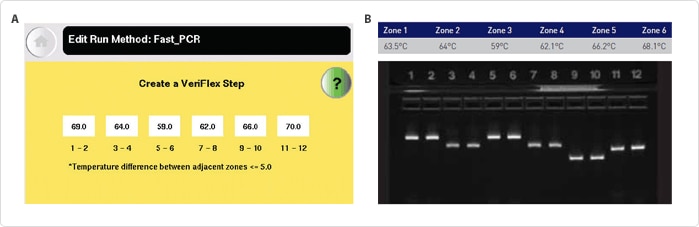

Figure 2. (A) Screenshot from Veriti™ Thermal Cycler showing the annealing temperature being set for 6 different primers. (B) Six different annealing temperatures were set for each of the zones, with the annealing/extension step matching the length of the longest amplicon.
